ELEGOO Mars/Anycubic Photon/Cearlity LD-002R LCD Screen Replacement

$40.00 USD $26.68 USD
Free shipping on all orders in mainstream countries

visamasterpaypalamerican expressapple payjcb

Frequently Bought Together

Total price:$70.00 $43.48
Description

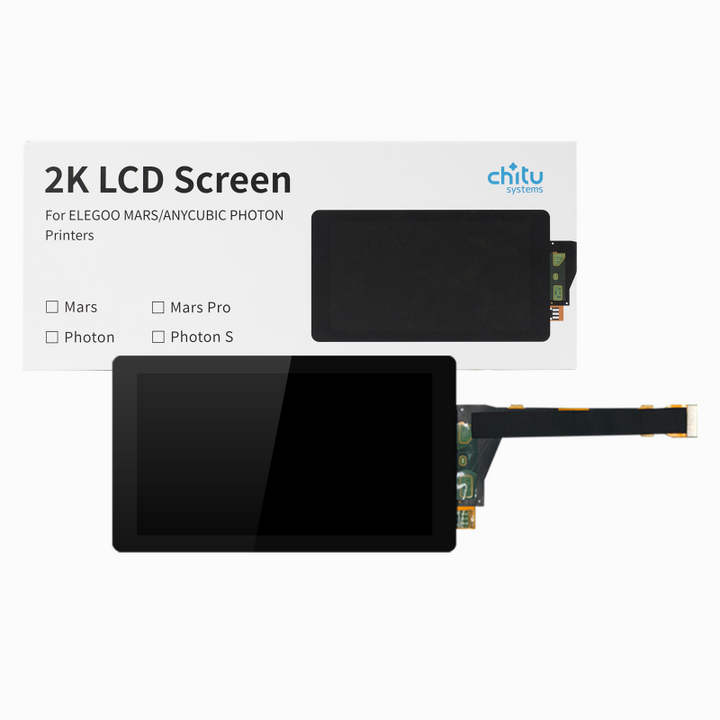

5.5 Inch 2K SX04 LCD replacement available for Anycubic Photon/Elegoo Mars/Creality LD-002R


Parameter:

Applicable printer: ELEGOO Mars/Anycubic Photon/Creality LD-002r

Active area: 68.04(H)X120.96(V)  mm

Pixel format:1440(H)×2560(V) Pixel

1 Pixel =R+G+B dots

Pixel pitch: 0.01575(H) x 0.04725(V) mm

Pixel configuration: R, G, B vertical stripes

Display mode: Normally Black

LDC Driving method: DC Driving / Column Inversion

Liquid Crystal Mode: New Mode2

Number of colors  :16,777,216  Colors                 24 bits

Outline dimensions:70.94(W)×128.49 (H)×1.35(D) TYP mm

Note 3‐1

Mass: Approx 25 g


How to replace the Anycubic Photon LCD screen?

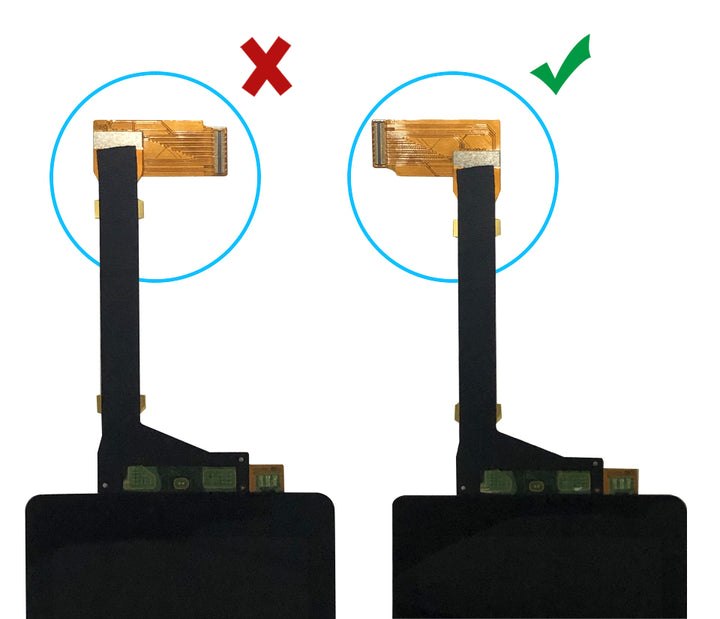

The Original Photon uses the ChiTu L V1 board, it uses SX03 pinout on the board, the screen is SX04 so you will need to use the adaptor that comes with the package.

How to replace Elegoo mars lcd?






How to replace the Creality LD-002r LCD screen?





How to replace the Epax X1 LCD screen?





After-sales:



1. The screen will go through a strict exposure calibration test before leaving the factory. Most of the new screen damage is related to transportation After receiving the screen, first check whether the screen is normal. If there are cracks, or breakage please contact
us within three days. We will give you a new screen or a refund.

2. Feedback after installation and use, it will not have a warranty. The screen is consumable.  Most of the environment, such as resin selection, printing techniques, etc, will affect the screen.

Thank you for your kind understanding.The damage described in rule 1, if the feedback after installation and use, it will not have a warranty.
