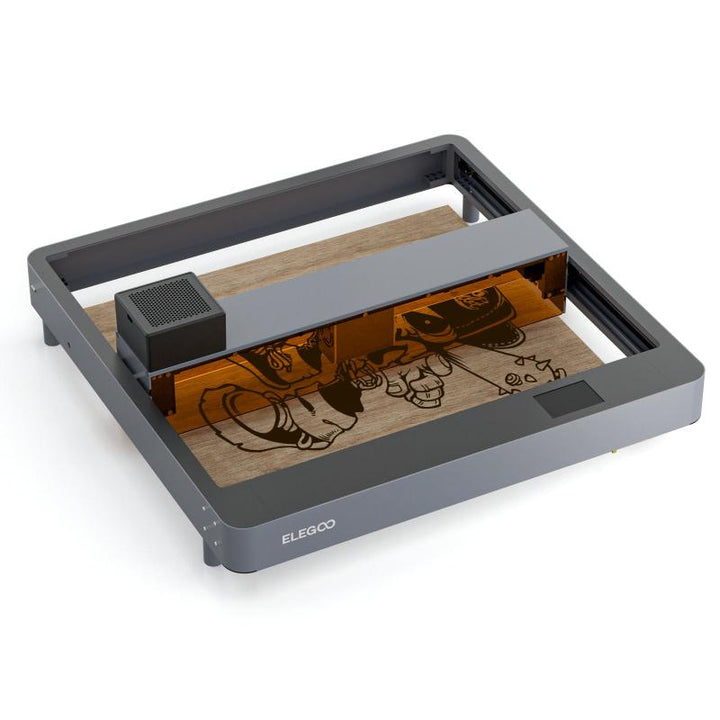

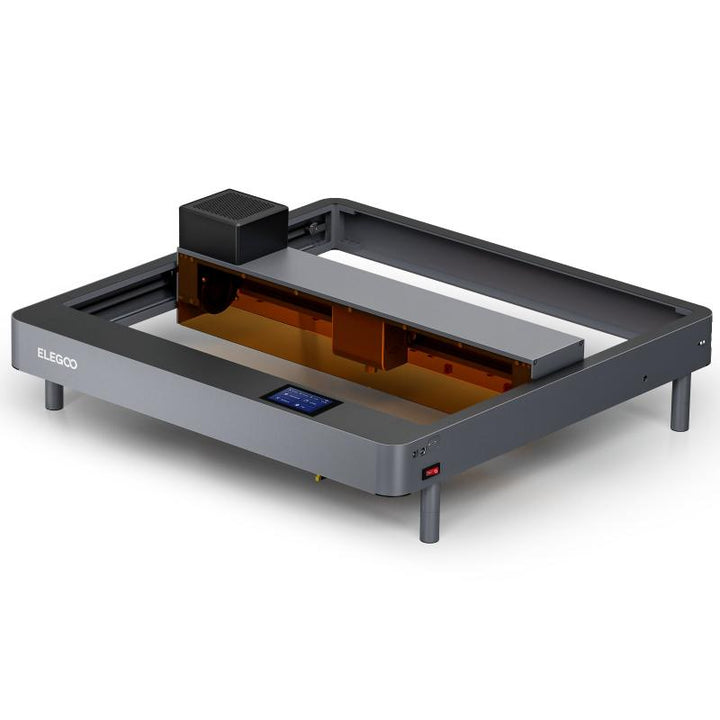

ELEGOO PHECDA Laser Engraver

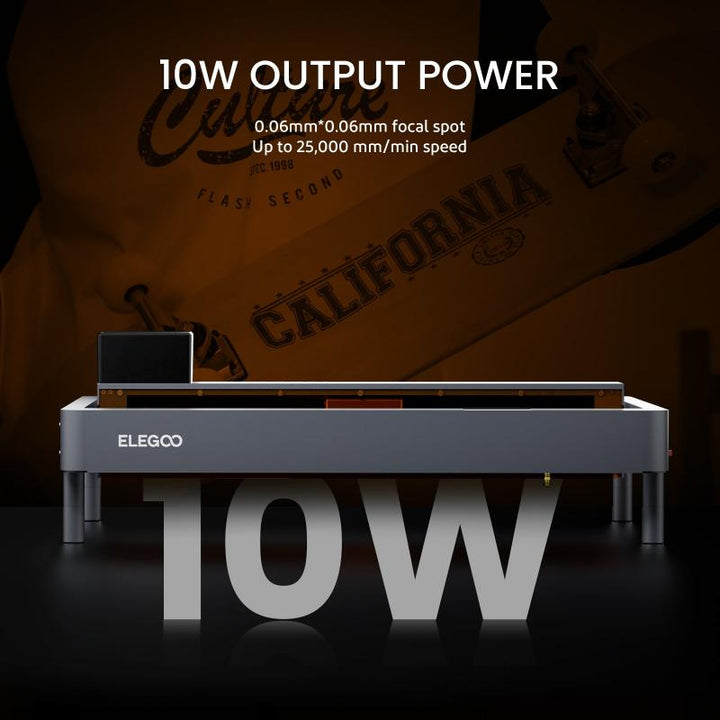

【10W/20W Output Power】ELEGOO PHECDA laser engraver offers high performance and versatility with its 10W output power. With a high energy density of 0.06mm*0.06mm/0.07mm*0.13mm focal spot, it can achieve speeds of up to 25,000 mm/min without compromising quality. This makes it capable of engraving or cutting a wide range of materials, including wood, bamboo, leather, kraft paper, stainless steel, and aluminum.

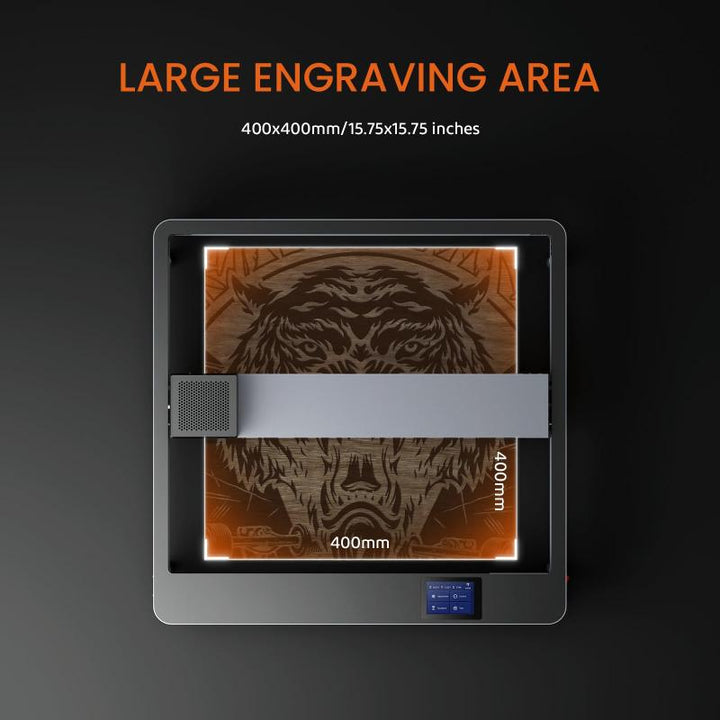

【Large Engraving Area】The machine also features a generous engraving area of 400 x 400 mm /15.75×15.75 inches, giving you the creative freedom to take on large projects or engrave multiple pieces at once. Plus, its height-adjustable laser head and adjustable risers enable you to engrave objects of different heights with ease.

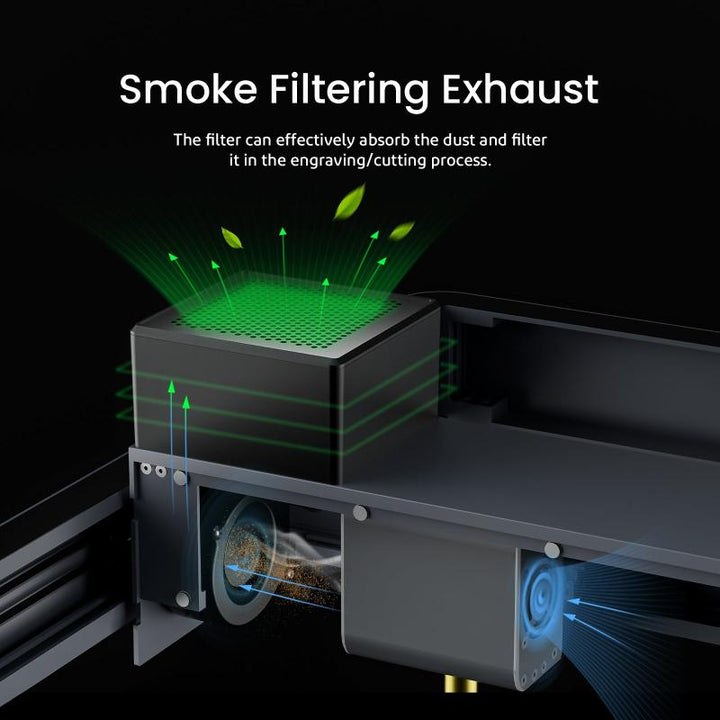

【Smoke Filtering Exhaust】To ensure a clean and safe work environment, the laser head is equipped with a smoke exhaust filter and dual cooling fans that effectively absorb fumes and dust generated during engraving. The filter cartridge has a detachable cover for easy filter removal and replacement.

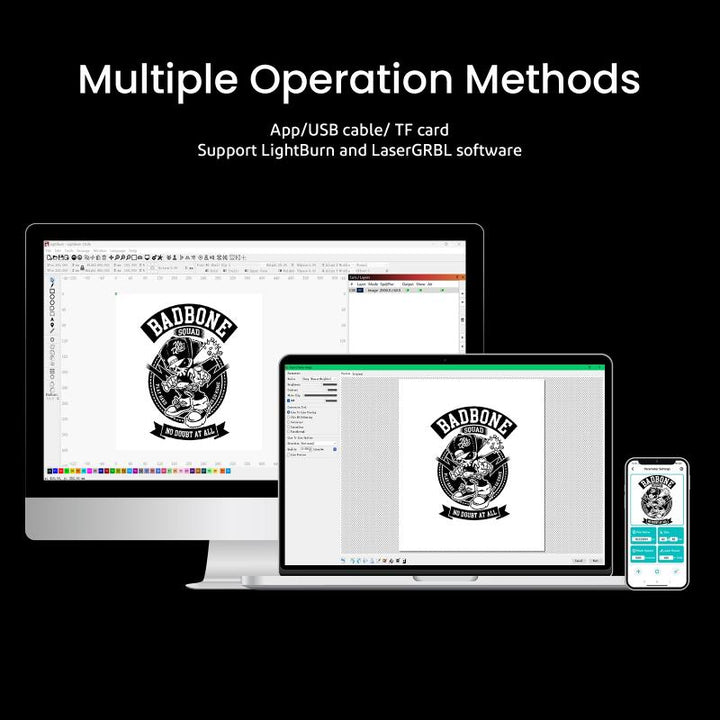

【Multiple Operation Methods】The ELEGOO Phecda laser engraver offers multiple operation methods for your convenience. You can control the machine via a mobile App for remote WIFI operation and custom engraving (your phone must be connected to the machine’s wifi), transfer data using a USB cable or TF card, and it supports LightBurn and LaserGRBL software for added flexibility.

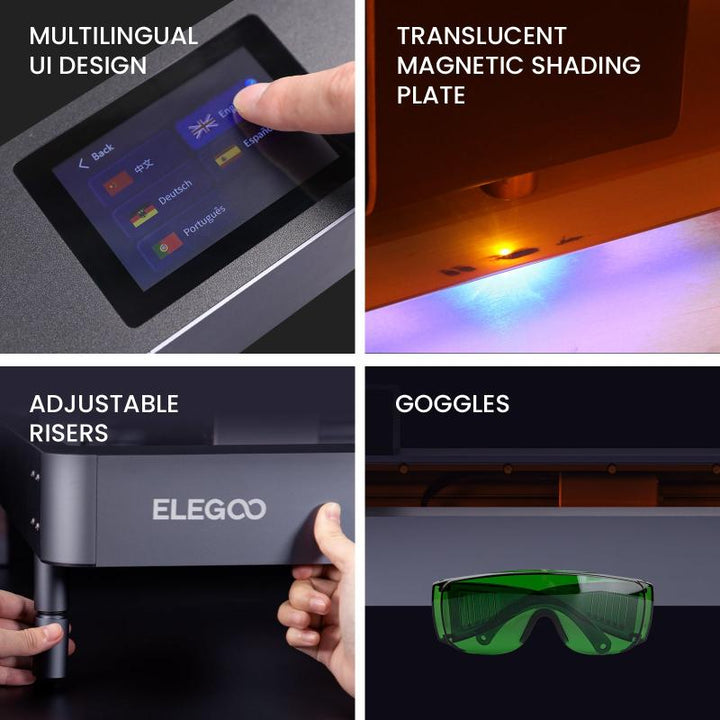

【Magnetic Shading Plate】One standout feature of the Phecda is its translucent magnetic shading plate. This innovative structure shields your eyes from harmful UV light and can also function as a laser filtering see-through cover to observe the light spot engraving track. Additionally, it doubles as a smoke collection device, improving the efficiency of the smoke filter. For even more safety, the machine comes with goggles to protect your eyes.

【Safety Protection】Safety is a top priority with the ELEGOO Phecda, thanks to its built-in sensor that immediately stops and beeps if flames are detected. If the machine is accidentally moved, tilted, or flipped during operation, it will pause and alarm.

High Precision Engraving & Cutting

The PHECDA laser engraver and cutter offers an output power of 10W and a focal spot of 0.06mmx0.06mm, allowing you to create incredibly fine details in engraving or cutting jobs at a speed of up to 25000mm/min. The machine can handle a variety of materials, including up to 8mm basswood board.

400x400mm Engraving Space

The laser engraving machine has a large engraving area of 400x400mm/15.75×15.75 inches to meet daily DIY needs and perfect for processing large art projects. Add-ons like a rotary attachment for engraving on a cylindrical surface and an air assist for cleaner cuts are also available (Need to purchase separately).

Efficient Filtration System

The machine’s smoke exhaust filter and two cooling fans on the laser head effectively filter and exhaust fumes and dust generated during engraving. After engraving, the fans work for one more minute to prolong fan service life, reduce noise, and save power. The filter cartridge has a detachable cover for easy filter removal and replacement.

Unique Laser Head

The Satellite Orbit Module cools and protects delicate components in perfect synchronicity. Phecda’s laser head features a horizontal structure and rail insertion design for easy replacement, a focal positioning bar for simple focal distance adjustment, and a detachable window mirror to prevent accuracy loss due to mirror damage.

Stable and Quiet Movement

The machine frame is constructed with aluminum alloy for durability and stability, especially when operating at high speeds. The high-quality silent driver motor reduces vibration and running noise. The aerospace-grade POM V-wheels are ultra-quiet, high-precision, and wear-resistant, while the two rows of 3 + 3 V-wheels of the Y axis, combined with the V-groove slide rail and high-tension synchronous belt, ensure stable, quiet, and precise movement of the laser module.

More Practical Features

The magnetic plate on the Z-axis serves as both a laser filtering see-through shield to protect eyes from UV light and a smoke collection device to absorb smoke.

The machine has a built-in sensor that immediately shuts down and beeps if a fire is detected, and it will automatically stop and alarm when the laser engraver is moved, tilted, or flipped.

Phecda is compatible with LightBurn and LaserGRBL software and supports TF card/USB/Wi-Fi/APP control for Windows/Mac/iOS/Android. The engraving file format supports SVG/DXF/JPG/JPEG/PNG/BMP/TIF and more.
